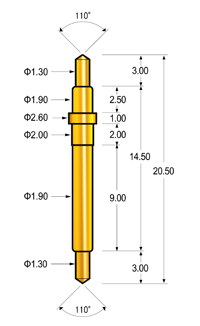

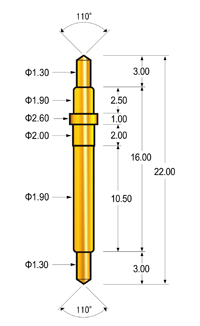

* Dimensions in Millimeters
 |
 |
 |
 |
 |
|
 |
 |
 | |
 | |
Mechanical | |
| Recommended Working Travel | 2.00 |
| Spring Force | 2/3 travel 75g ± 20% |
Electrical | 3 amps DC max. |
Material and Finish | |
| Plunger | Brass, Gold Plated |
| Barrel | Brass, Gold Plated |
| Spring | Music Wire, Gold Plated |
|
 |
|
|
|
|
|
|
|
|
|
 | |
| |
Mechanical | |
| Recommended Working Travel | 4.00 |
| Spring Force | 2/3 travel 150g ± 20% |
Electrical | 5 amps DC max. |
Material and Finish | |
| Plunger | Brass, Gold Plated |
| Barrel | Brass, Gold Plated |
| Spring | Music Wire, Gold Plated |
|
 |
|
|
|
|
|
|
|
|
|
 | |
| |
Mechanical | |
| Recommended Working Travel | 4.00 |
| Spring Force | 2/3 travel 150g ± 20% |
Electrical | 5 amps DC max. |
Material and Finish | |
| Plunger | Brass, Ni Plated |
| Barrel | Brass, Ni Plated |
| Spring | Music Wire, Ni Plated |
