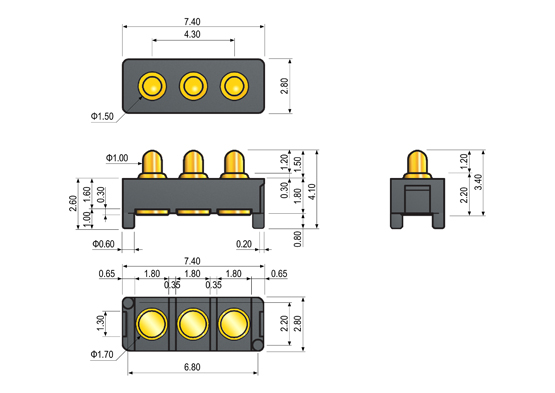

* Dimensions in Millimeters
 | |
 | |
Material and Finish | |
| Plunger | Brass, Gold Plated over Nickel |
| Barrel | Brass, Gold Plated |
| Spring | Music Wire, Gold Plated over Nickel |
| Housing | PA46 (or PA9T) |
Electrical | |
| Current Rating | DC 12V, 2A |
| Resistance | 30mΩ Max. |
Mechanical | |
| Unloaded Height | 3.40mm |
| Working Height | 2.60mm |
| Contact Force | 100±20% at Working Height |
| Durability | 10,000 Cycles |
 |
 |
 |
 |
 |
|
 |
 |
