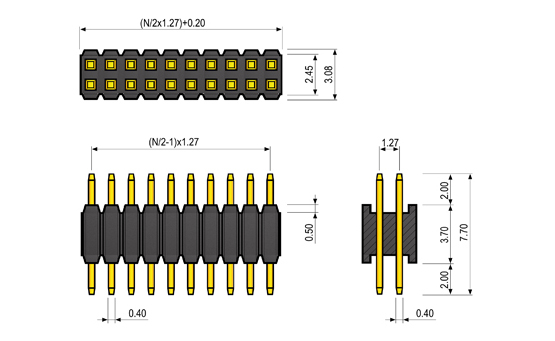

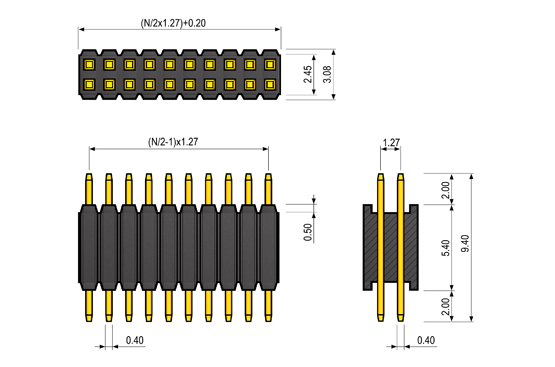

* Dimensions in Millimeters

Material and Finish
Insulator	PA 46 Stanyl (UL 94V-0), Black
Contact	Brass, Au over Ni Plated
Electrical
Withstanding Voltage	250V AC / 1min
Current Rating	2A
Contact Resistance	15mΩ max initial
Insulation Resistance	100MΩ min
Environmental
Operating Temperature Range	-55℃ to +150℃
