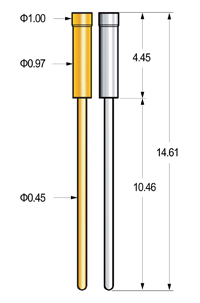

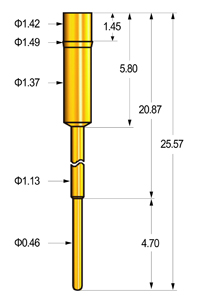

* Dimensions in Millimeters
 |
 |
 |
 |
 |
|
 |
 |
 | |
 | |
Mechanical | |
| Mating Pin Dia. | Φ0.40 ~ 0.56 |
| Insertion Force | 150g ± 20% (Φ0.46) |
| Extraction Force | 90g ± 20% (Φ0.46) |
Material and Finish | |
| Sleeve | Brass, Gold Plated over Nickel |
| Contact | Beryllium Copper, Gold Plated over Nickel |
|
 |
|
|
|
|
|
|
-097.jpg) | |
| |
Mechanical | |
| Mating Pin Dia. | Φ0.38 ~ 0.56 (Φ0.38 ~ 0.51) |
| Insertion Force | 25(75)g ± 20% (Φ0.46) |
| Extraction Force | 20(50)g ± 20% (Φ0.46) |
Material and Finish | |
| Sleeve | Brass, Gold(Tin) Plated over Nickel |
| Contact | Beryllium Copper, Gold Plated over Nickel |
|
 |
|
|
|
|
|
|
 | |
| |
Mechanical | |
| Mating Pin Dia. | Φ0.40 ~ 0.56 |
| Insertion Force | 150g ± 20% (Φ0.46) |
| Extraction Force | 90g ± 20% (Φ0.46) |
Material and Finish | |
| Sleeve | Brass, Gold Plated over Nickel |
| Contact | Beryllium Copper, Tin Plated over Nickel |
