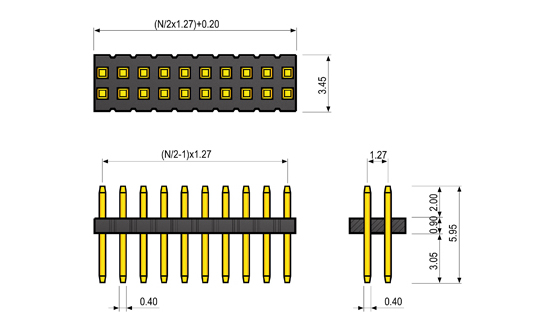

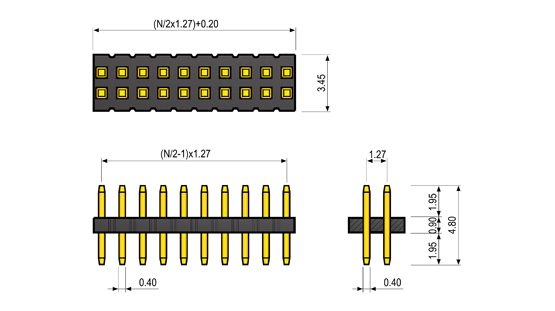

* Dimensions in Millimeters
![]() | |
![]() | |
Material and Finish | |
Insulator | PA 46 Stanyl (UL 94V-0), Black |
Contact | Brass, Au over Ni Plated |
Electrical | |
Withstanding Voltage | 250V AC / 1min |
Current Rating | 2A |
Contact Resistance | 15mΩ max initial |
Insulation Resistance | 100MΩ min |
Environmental | |
Operating Temperature Range | -55℃ to +150℃ |
![]() | ||
![]() |
![]() |
![]() |
![]() |
![]() |
|
![]() |
![]() |
|
![]() | ||
![]() |
![]() |
![]() |
![]() |
![]() |
|
![]() |
![]() |
