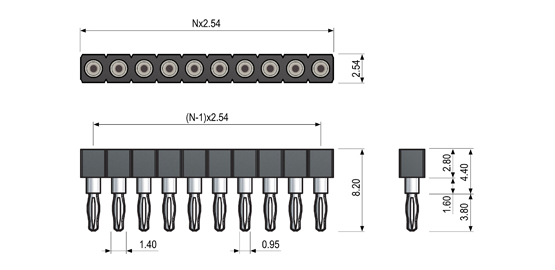

* Dimensions in Millimeters
 | |
 | |
Material and Finish | |
| Insulator | PA46 syanyl (UL94V-0), Black |
| Contact (Sleeve) | Brass, SnPb over Ni Plated |
| Contact (Contact) | Beryllium Copper, SnPb over Ni Plated |
Electrical | |
| Withstanding Voltage | 500V AC / 1min |
| Current Rating | 3A |
| Contact Resistance | 15mΩ max initial |
| Insulation Resistance | 1,000MΩ min |
Mechanical | |
| Insertion Force | 160g ± 20% per Contact (Φ0.47) |
| Extraction Force | 95g ± 20% per Contact (Φ0.47) |
Environmental | |
| Temperature Range | -55℃ to +150℃ |
 |
 |
 |
 |
 |
|
 |
 |
